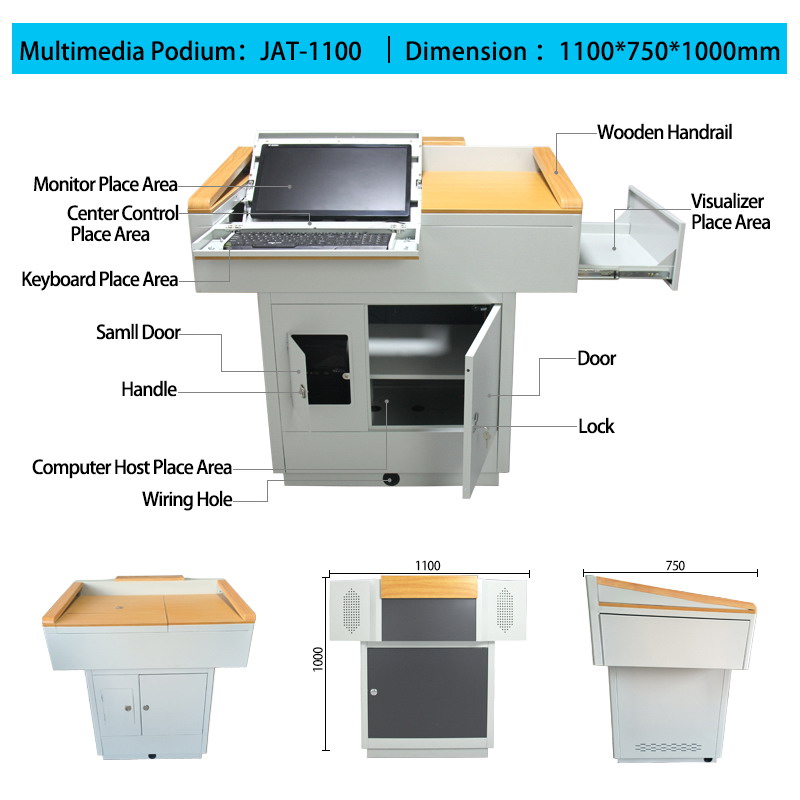

Overall size: 1100 * 750 * 1000mm
1. The upper body size is 1100mm * 750mm * 330mm, and the lower body size is 750mm * 640mm * 670mm. The upper and lower platform bodies are connected by snap fasteners for easy disassembly and installation, maximizing the compression of the space occupied by the product during transportation, reducing transportation costs, and minimizing environmental damage.
2. Materials: High quality cold-rolled steel plate+high-end wooden handrails+scratch resistant wooden tabletop, with the steel part made of 0.8mm-1.2mm high-quality cold-rolled steel plate.
3. Design: The keyboard adopts a 180 degree flip design and is integrated with the display board. When closed, it is flush with the desktop. The mouse is stored on the right side of the keyboard in a reasonable position, saving space and easy to operate. The central control is installed under the keyboard box, stamped and formed as a whole, with a compact structure and reasonable space design. The locking method adopts a linked design, with one lock controlling the display, keyboard box, central control and booth.
4. The R10 circular arc design around the countertop minimizes harm to teachers and students, and the lower end of the countertop has a tapered design for safety and aesthetics; The desktop functional area layout is reasonable, the design is exquisite, and teachers can easily teach; The front and rear doors of the cabinet make construction and maintenance operations more convenient.
5. Ergonomics: The monitor adopts a flip design, which can rotate 165 degrees and be manually adjusted at any angle, ensuring that teachers can obtain the best viewing angle when teaching from various positions. It is also very convenient for dust removal and replacement of the monitor. Supports 17-23 inch LCD displays of different specifications, with a unique and innovative structure.
6. Color matching: The steel part on the back of the podium is made of a combination of white and gray, creating a distinct color difference with the wood grain color of the backboard, giving people a visual enjoyment. The podium adopts a streamlined design with heat dissipation holes, making it more user-friendly.
7. Podium features: (1) The desktop is covered with wooden boards, making the product more beautiful. The desktop is made of moisture-proof and scratch resistant materials, which improves the practicality of the product. (2) The bottom of the podium adopts a retractable small base design, which improves the hierarchy of the product. There are wiring holes on both sides of the base and near the podium, making installation and wiring more convenient.
8. Module installation (optional) on the right side of the desktop includes a power interface, two USB ports, one network interface, one VGA interface, one audio interface, one MIC port, one audio and video interface, and one HDMI interface.
